Since the protection tube for the temperature element is responsible for protecting the temperature detecting elements such as thermocouples and resistance thermometer sensors, it is necessary to select one suitable for applications in accordance with temperature measuring point conditions and desired measurement accuracy. Therefore, this protection tube should withstand the temperature and pressure of measured objects, vibration and shock for long and stable operation.
OKAZAKI can offer a protection tube weld sealed at the end of metal pipe and a monolithic drilled well of bar material. In general, the drawn protection tube is used in a Iow pressure place, and the drilled well in applications subjected to significantly large stresses such as high-pressure gas and high speed fluids, with strictly selected shape, size and material fitting to the combined temperature element and operating conditions.

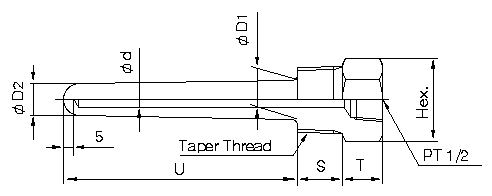

TW10A ![](/product/image/TW10A.gif)

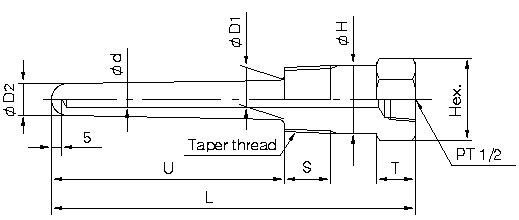

| TW10D ![](/product/image/TW10D.gif)

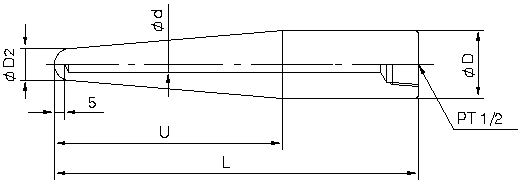

| TW10E ![](/product/image/TW10E.gif)

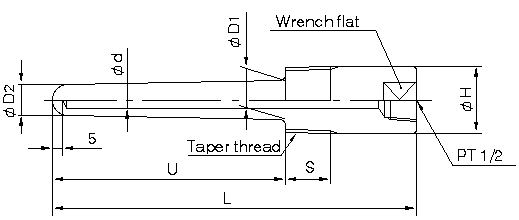

| TW10F ![](/product/image/TW10F.gif)

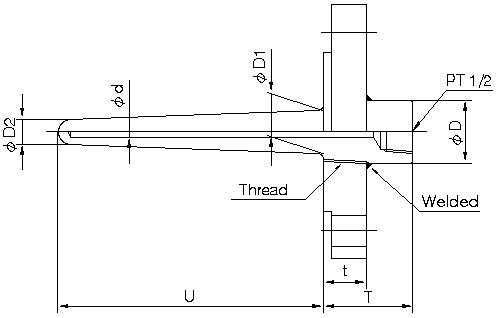

| TW20A ![](/product/image/TW20A.gif)

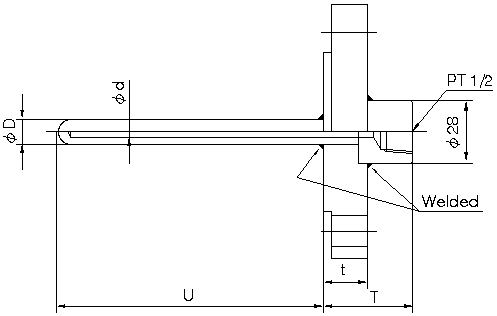

| TW20B ![](/product/image/TW20B.gif)
| |
|
